Description

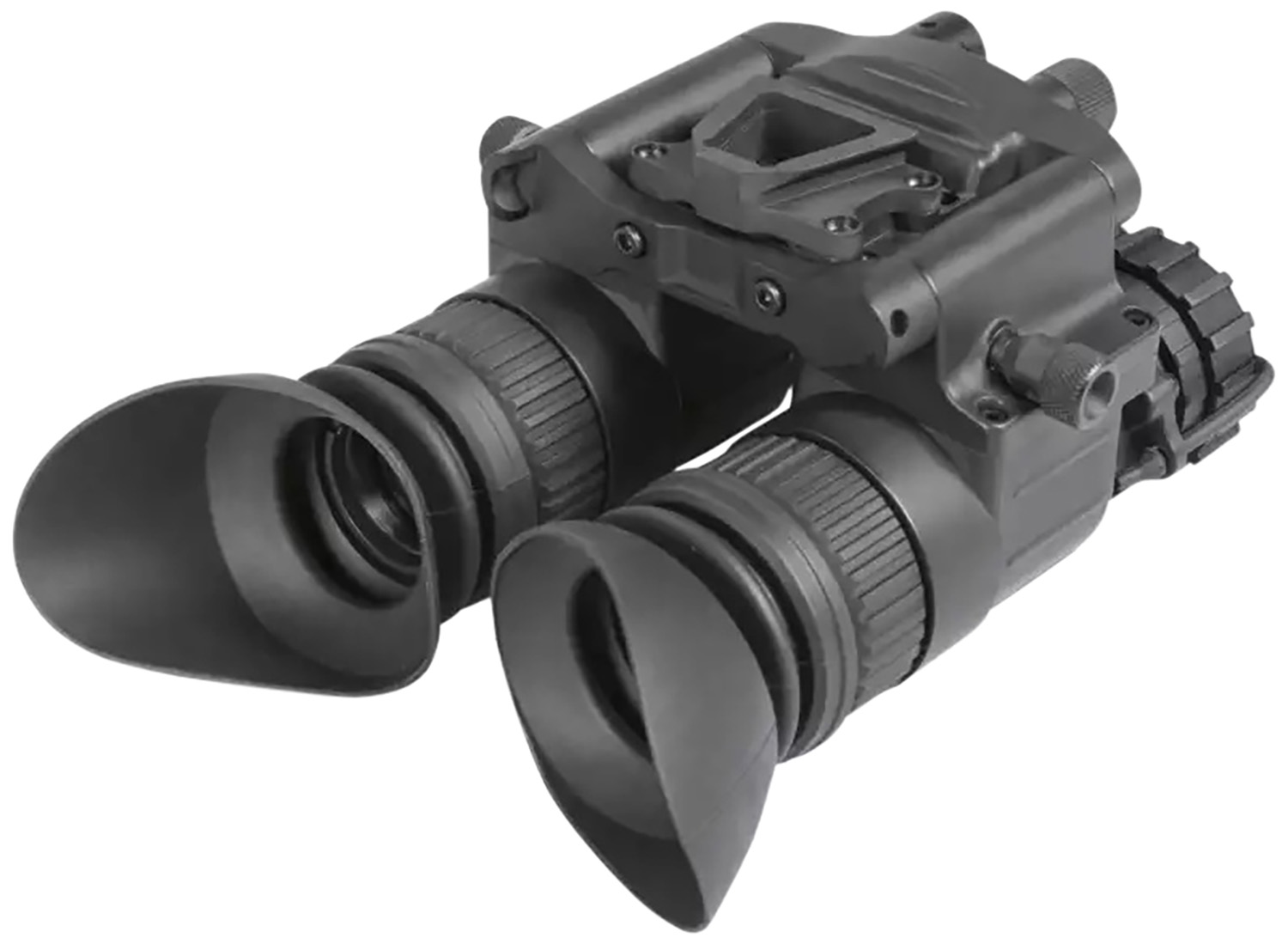

The AGM NVG-40 3AW1 Night Vision Binocular (AGM item 14NV4123414111) is a dual-tube night vision goggle built around Gen 3 auto-gated white phosphor Level 1 image intensifier tubes. It gives true stereoscopic vision with a 40 degree field of view, runs on a single CR123A or AA battery for up to about 20 hours, and mounts to standard helmet and head mounts for hands-free use.
AGM NVG-40 3AW1 Night Vision Binocular Overview
Dual-tube goggles let both eyes see through an intensifier, which improves depth perception compared with a single monocular. That makes walking, driving off-road, navigating terrain and handling gear at night noticeably easier and less tiring. The NVG-40 uses multi-coated 27mm F/1.3 optics in a compact composite housing and includes a built-in infrared illuminator with flood lens for close work such as reading a map in total darkness.
Gen 3 White Phosphor
White phosphor tubes display the scene in shades of black, gray and white rather than the traditional green. Many users find white phosphor gives better contrast and a more natural look, especially for identifying shapes and details. Auto-gating protects the tube and keeps the image usable when light levels change suddenly, such as passing headlights or muzzle flash. AGM lists resolution at 64 to 72 line pairs per millimeter, and Level 1 tubes are described as having practically no visible spots in the central zone.
Mounting Options

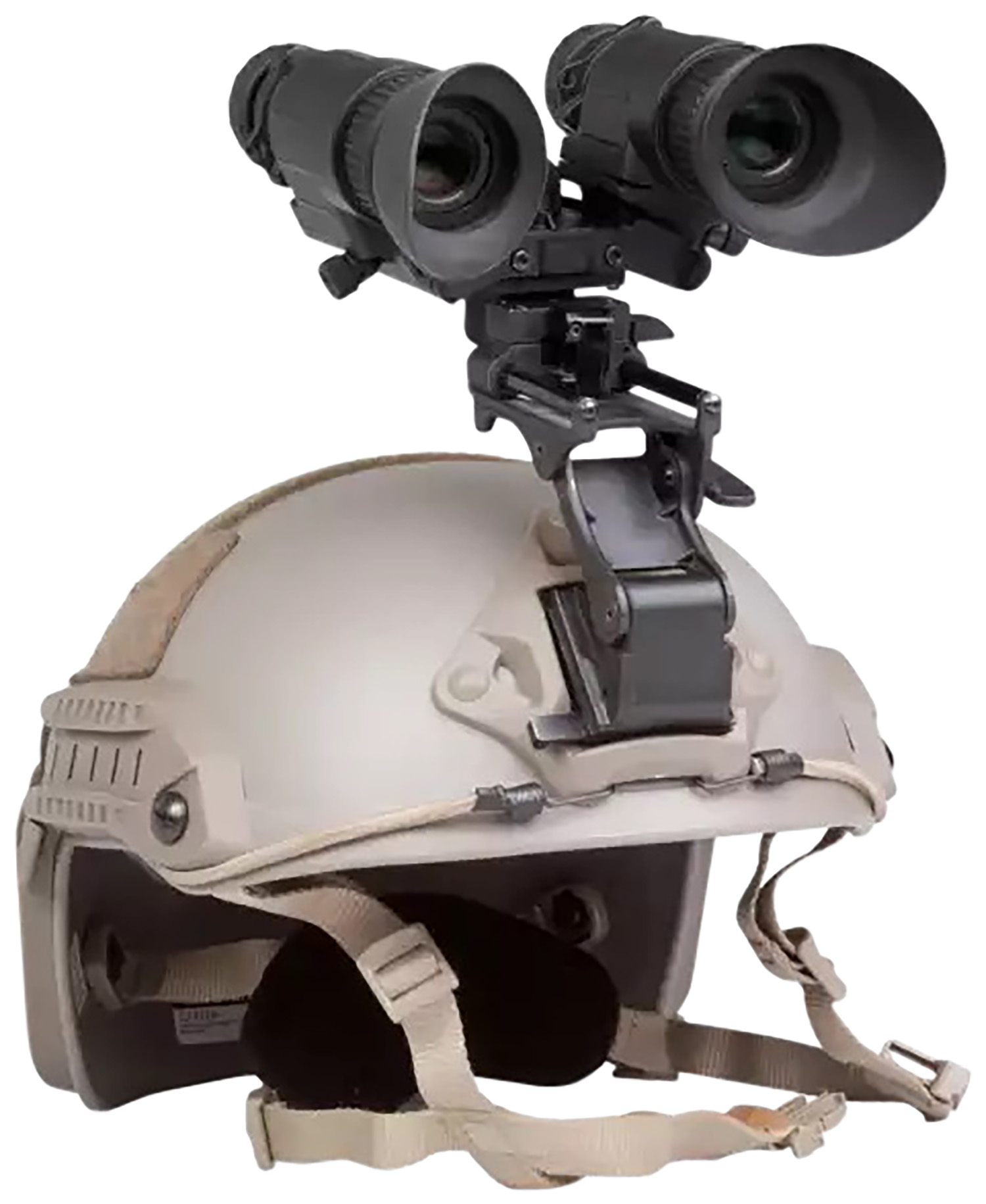

An NVG interface shoe comes preinstalled for standard dovetail headset and helmet mounts, and a bayonet or horn interface shoe is included for mounts of that type and for connecting a battery pack. The goggle also works with mounts that use the AN/PVS-7, PVS-14, PVS-15 and PVS-18 interfaces, and with mini-rail mounts when paired with the optional AGM kit. For hands-free use, a quality helmet or head mount is essential.
Optics and Controls
Magnification is 1x with a 40 degree field of view and focus from about 0.25 meters to infinity. Eye relief is 25mm and each eyepiece offers diopter adjustment from -6 to +2. Simple controls and LED indicators show low battery, infrared on and excessive light. A bright light cut-off helps protect the tubes from damage in strong light.
Night Vision Care
Keep the lens caps on in daylight, never point the device at bright light sources, and store it dry with the battery removed. Use a soft lens brush and approved cleaning cloth on the optics. Although white phosphor Gen 3 tubes are durable, they are the most expensive part of the system and deserve careful handling.
Honest Limitations
Gen 3 dual-tube systems are a significant investment, and a helmet or head mount is sold separately. At 1x, the goggle is for navigation and observation, not long-range identification. Night vision image intensifiers are export-controlled items; they may not be exported without proper authorization. AGM covers this unit with a limited three-year warranty.
Specifications
- Brand: AGM Global Vision
- Model: NVG-40 3AW1
- Item number: 14NV4123414111
- UPC: 810027773951
- Tube: Gen 3 auto-gated white phosphor, Level 1
- Resolution: 64 to 72 lp/mm
- Magnification: 1x
- Lens: 27mm F/1.3
- Field of view: 40 degrees
- Focus: 0.25 m to infinity
- Eye relief: 25mm
- Diopter: -6 to +2
- Battery: 1 x CR123A or AA, up to about 20 hours
- Built-in IR illuminator
- Warranty: Limited 3 years
Before You Buy
Plan for a compatible helmet or head mount. Night vision devices are not firearms, so no FFL transfer is needed, but they are export-controlled and are sold for use within the United States only.
Who It Is For
The AGM NVG-40 3AW1 Night Vision Binocular is a great fit for hunters, landowners, search and rescue volunteers and serious night vision users who want two-eyed Gen 3 white phosphor performance.
Buy the AGM NVG-40 3AW1 Night Vision Binocular at MAG5 Firearms
MAG5 Firearms is a family-owned FFL in Collegeville, Pennsylvania. Order the AGM NVG-40 3AW1 Night Vision Binocular online, or browse our optics section for night vision, thermal and mounts. For factory details, visit AGM Global Vision.
