Description
The AGM PVS-7 NW1 Night Vision Goggles (AGM item 12PV7122284011, UPC 810027779915) is a single-tube, dual-eyepiece night vision goggle built on the military PVS-7 pattern fitted with a Gen 2+ Level 1 image intensifier tube with a white P45 phosphor screen. White phosphor shows the scene in black, white and gray instead of green, which many users find more natural, with better perceived contrast in shadows and less eye fatigue on long nights. Level 1 is AGM’s value grade, so you get the white phosphor look at a Gen 2+ price.
AGM PVS-7 NW1 Night Vision Goggles Overview
The PVS-7 layout uses one image intensifier tube that feeds both eyes through a bi-ocular eyepiece, so you view with both eyes open and avoid the strain of a monocular, while paying for only one tube. AGM’s version weighs about 1.5 pounds (0.68 kg), uses a 27mm F/1.2 objective lens with a 40 degree field of view at 1x, and focuses from 0.2 meters to infinity.

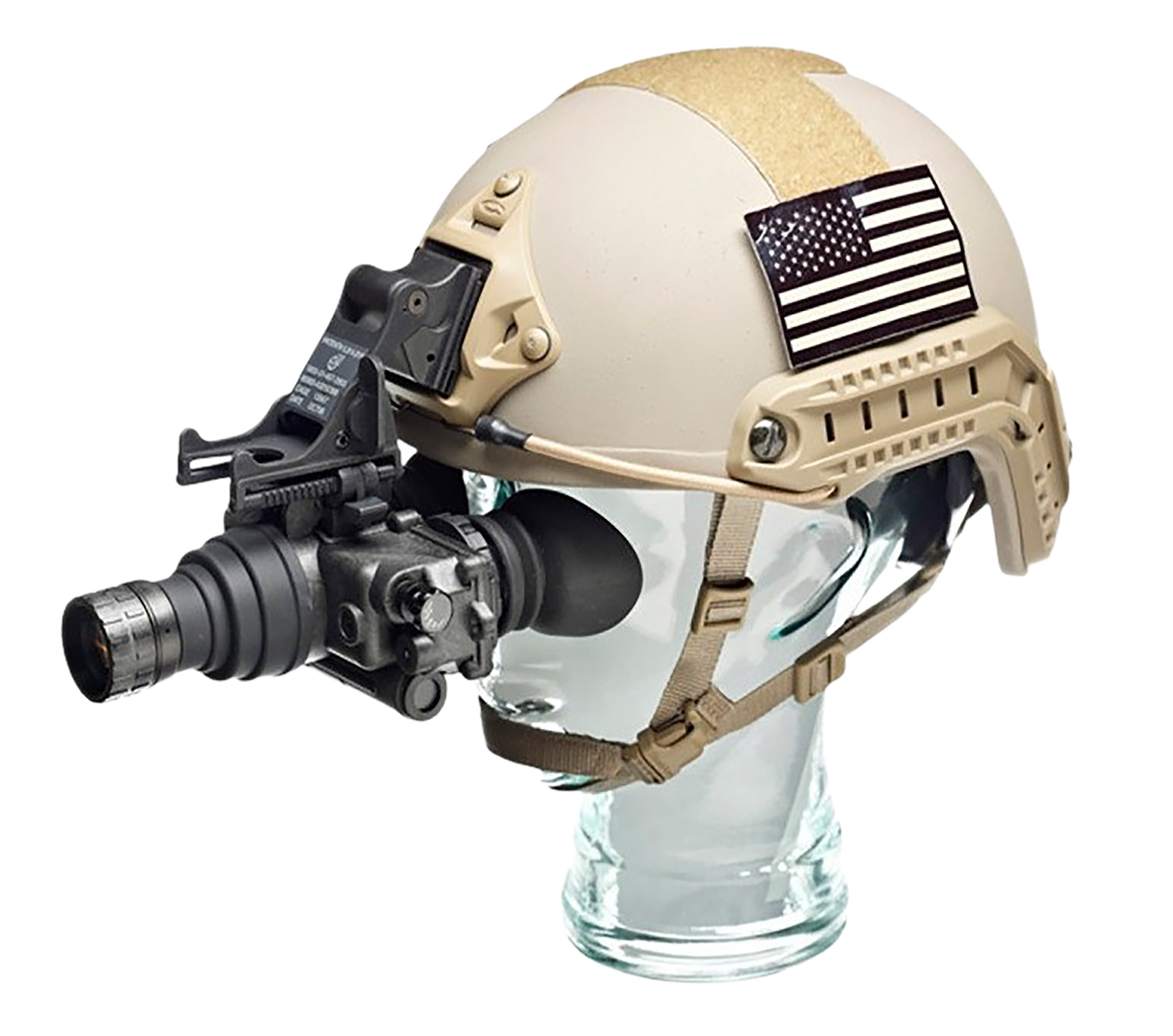

It runs on two AA alkaline batteries or one lithium BA-5567/U cell for up to about 60 hours, and the built-in infrared illuminator adds close-range light that is invisible to the naked eye. The goggle can be used handheld or worn on the included head mount, and it accepts an afocal magnifier lens for longer-range viewing.
Image Intensifier Tube

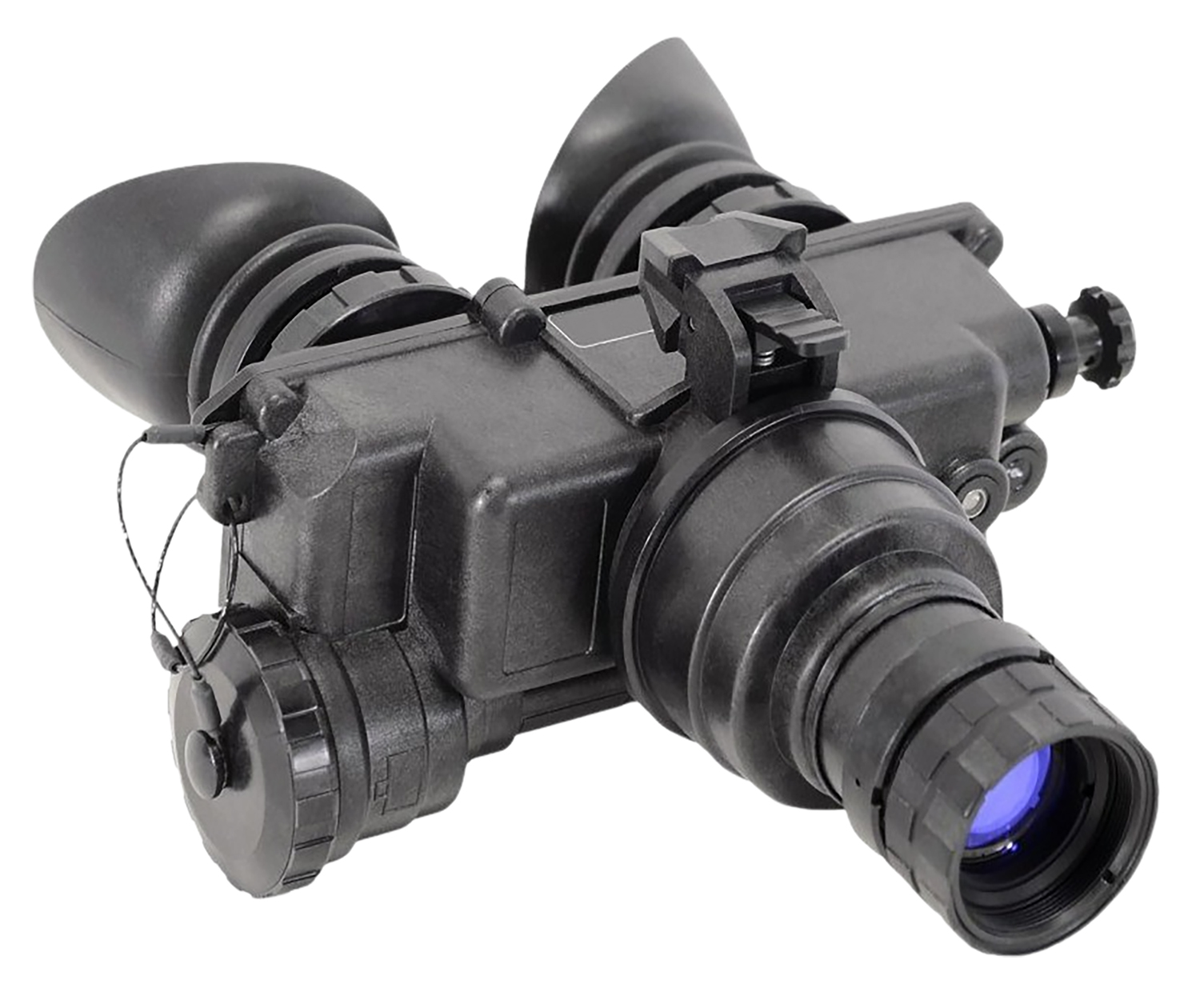

The NW1 configuration is the part of this listing that sets it apart from other PVS-7 versions: a Gen 2+ tube with white phosphor. Note: photos show the PVS-7 housing, which is identical across tube options.
AGM grades its tubes by resolution and image cleanliness. For the exact resolution, figure of merit and blemish specification of the tube in this unit, check the AGM datasheet or ask us before you order.
Controls and Features
A single rotary switch controls power and the IR illuminator, and the eyepieces adjust for interpupillary distance and diopter from -6 to +2. An automatic bright-light cut-off and an in-view IR indicator help protect the tube and remind you when the illuminator is on.
Because one tube feeds both eyes, the image is the same in each eyepiece. That gives a relaxed, natural feel for walking, driving on private land or watching a field for long periods, but it does not provide the true depth perception of a dual-tube binocular.
What Is Included
The box includes the goggles, head mount assembly, medium and thick brow pads, eye cups, lens cap with daylight filter, shoulder strap, lens paper, sacrificial window, demist shields, user manual and a soft carrying case.
Who Benefits Most
This version suits buyers who want the white phosphor look on a Gen 2+ budget, hunters who spend long nights behind the glass, and anyone who finds green images tiring.
Honest Limitations
At about 1.5 pounds the PVS-7 is heavier than a PVS-14 monocular, so long sessions on a head mount call for a well-adjusted strap and some counterweight. It is not designed to sit behind a riflescope.
With a single tube there is no stereo depth perception. Night vision image intensifiers are export-controlled and sold for use within the United States. Check AGM’s current warranty terms before you buy.
Specifications
- Brand: AGM Global Vision
- Model: PVS-7 NW1
- Item number: 12PV7122284011
- UPC: 810027779915
- Tube: Gen 2+ Level 1 White Phosphor (P45)
- Magnification: 1x
- Lens: 27mm F/1.2
- Field of view: 40 degrees
- Focus: 0.2 m to infinity
- Diopter: -6 to +2
- Battery: 2 x AA or 1 x BA-5567/U, up to about 60 hours
- IR illuminator: yes
- Weight: about 1.5 lb (0.68 kg)
Before You Buy
Think about how you will use it, how long your typical outing lasts and which batteries you want to carry. Night vision devices are not firearms, so no FFL transfer is needed, but image intensifier devices are export-controlled and sold for use within the United States only.
Who It Is For
The AGM PVS-7 NW1 Night Vision Goggles is a great fit for hunters, landowners and outdoor users who want Gen 2+ Level 1 White Phosphor performance.
