Description

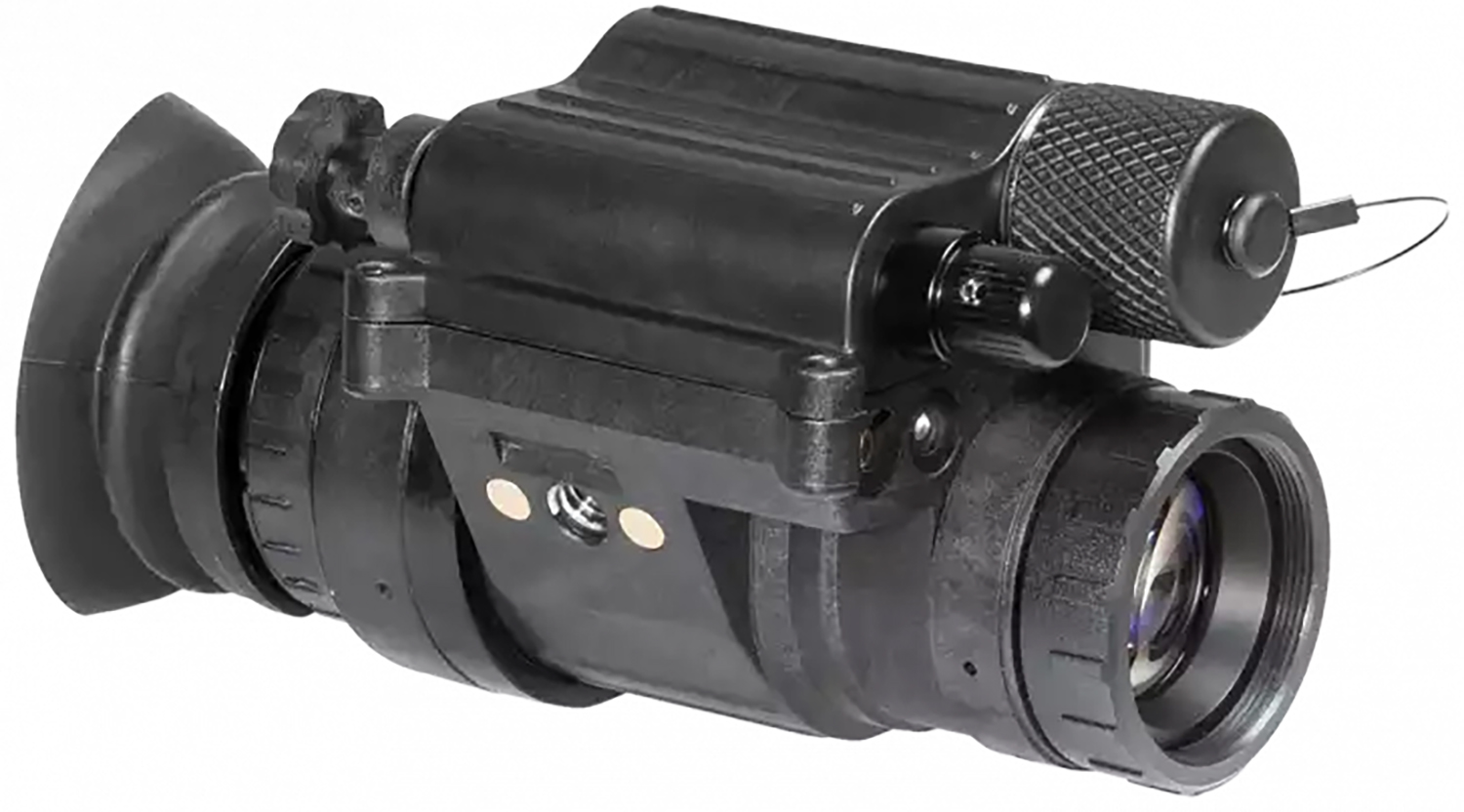

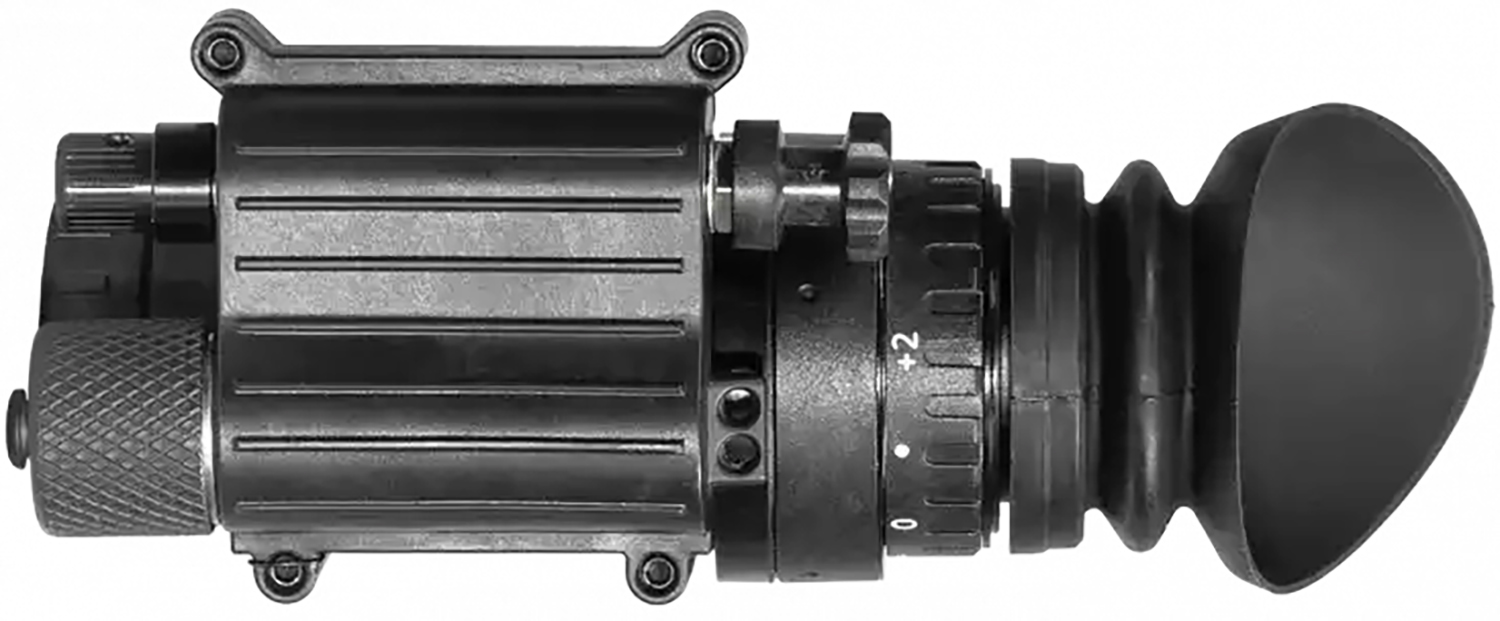

The AGM PVS-14E 3AL1 Monocular (AGM item 11PE412941143111) is a military-pattern night vision monocular built on the proven PVS-14 design and fitted with a Gen 3 Auto-Gated Level 1 image intensifier tube. It offers 1x magnification, a 40 degree field of view and a 26mm F/1.2 objective lens, and it can be used handheld, on a head mount or on a ballistic helmet.
AGM PVS-14E 3AL1 Monocular Overview
The PVS-14 format is the most widely used night vision monocular in the world because it is light, rugged and versatile. AGM’s PVS-14E version weighs about 10.2 ounces and measures roughly 4.25 by 2.5 by 2.7 inches. It conforms to MIL-STD-810G, is waterproof and rugged, and operates from minus 60 to 120 degrees Fahrenheit. A single AA or CR123 battery provides up to about 40 hours of runtime with the infrared illuminator off.
Image Intensifier Tube
The 3AL1 version uses a Gen 3 auto-gated Level 1 image intensifier tube with green phosphor. Gen 3 tubes use gallium arsenide photocathodes for greater sensitivity in very low light, and auto-gating protects the tube and keeps the image usable when light changes suddenly.
Compared with Gen 2+, a Gen 3 tube typically delivers a brighter, clearer image on moonless nights and under tree cover. Auto-gating reacts to bright sources such as headlights, flashlights or muzzle flash, reducing bloom and helping the image recover quickly. Green phosphor remains easy on the eyes for long observation.
Features
The monocular shuts off automatically when flipped up out of view on a head or helmet mount and turns back on when returned to position. Manual gain control lets you adjust brightness for conditions, and an automatic bright-light cut-off protects the tube. LED indicators in the field of view show low battery, infrared on and excessive light. Electronic polarity switching means the battery works in either orientation, and the built-in IR illuminator helps in total darkness.
What Is Included
AGM includes a head mount assembly and adapter, brow pad, eye cup, soft carrying case, daylight filter, shoulder strap, diopter lens cap, sacrificial window, demist shield, lens paper, manual and battery. Optional accessories include 3x and 5x afocal magnifiers, MICH and PASGT helmet mounts, a J-arm dovetail adapter and a long-range IR illuminator.
Who Benefits Most
This version suits hunters, security professionals and serious users who need dependable Gen 3 sensitivity on the darkest nights with a classic green image.
Honest Limitations
At 1x magnification, any PVS-14 is a navigation and observation tool rather than a long-range identification device; afocal magnifiers help but narrow the view. Helmet mounts are sold separately. Night vision image intensifiers are export-controlled and are sold for use within the United States. AGM covers the PVS-14E with a three-year warranty.
Specifications
- Brand: AGM Global Vision
- Model: PVS-14E 3AL1
- Item number: 11PE412941143111
- UPC: 810164391476
- Tube: Gen 3 Auto-Gated Level 1
- Phosphor: green
- Magnification: 1x
- Objective: 26mm F/1.2
- Field of view: 40 degrees
- Focus: 0.25 m to infinity
- Diopter: -6 to +2
- Battery: 1 x AA or CR123, up to about 40 hours (IR off)
- Weight: about 10.2 oz
- Operating temperature: -60 to 120 F
- Military standard: 810G
- Warranty: 3 years
Before You Buy
Decide how you plan to use the monocular and whether you need a helmet mount. Night vision devices are not firearms, so no FFL transfer is needed, but they are export-controlled and sold for domestic use only.
Who It Is For
The AGM PVS-14E 3AL1 Monocular is a great fit for anyone who wants a versatile, mountable night vision monocular with a Gen 3 Auto-Gated Level 1 tube.
