Description
The AGM PVS-14 3APW Monocular (AGM item 11P4M123474111) is a classic PVS-14 style night vision monocular fitted with a Gen 3 Auto-Gated P45 White Phosphor FOM 2000+ image intensifier tube. It offers 1x magnification, a 40 degree field of view and a 27mm F/1.2 lens, and it can be used handheld, on the included head mount, or on a ballistic helmet with an optional mount.
AGM PVS-14 3APW Monocular Overview
The PVS-14 has been the standard military night vision monocular for decades, and AGM’s version follows that proven layout. It weighs about 12.4 ounces, measures roughly 4.5 by 2.5 by 2.7 inches, conforms to MIL-STD-810G and is waterproof. It runs on a single AA battery, with up to about 40 hours of runtime with the IR illuminator off, and operates from minus 60 to 120 degrees Fahrenheit.
Image Intensifier Tube

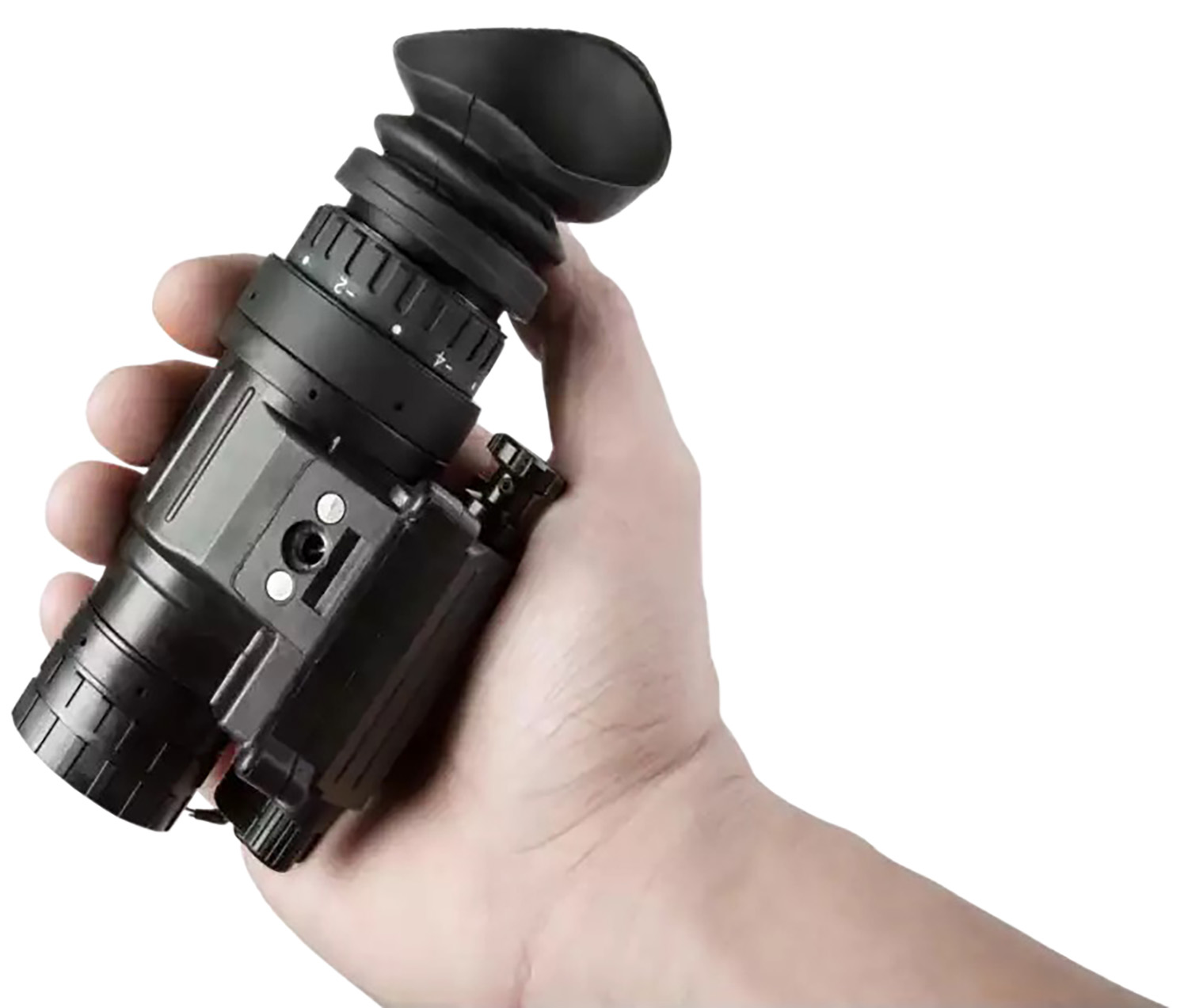

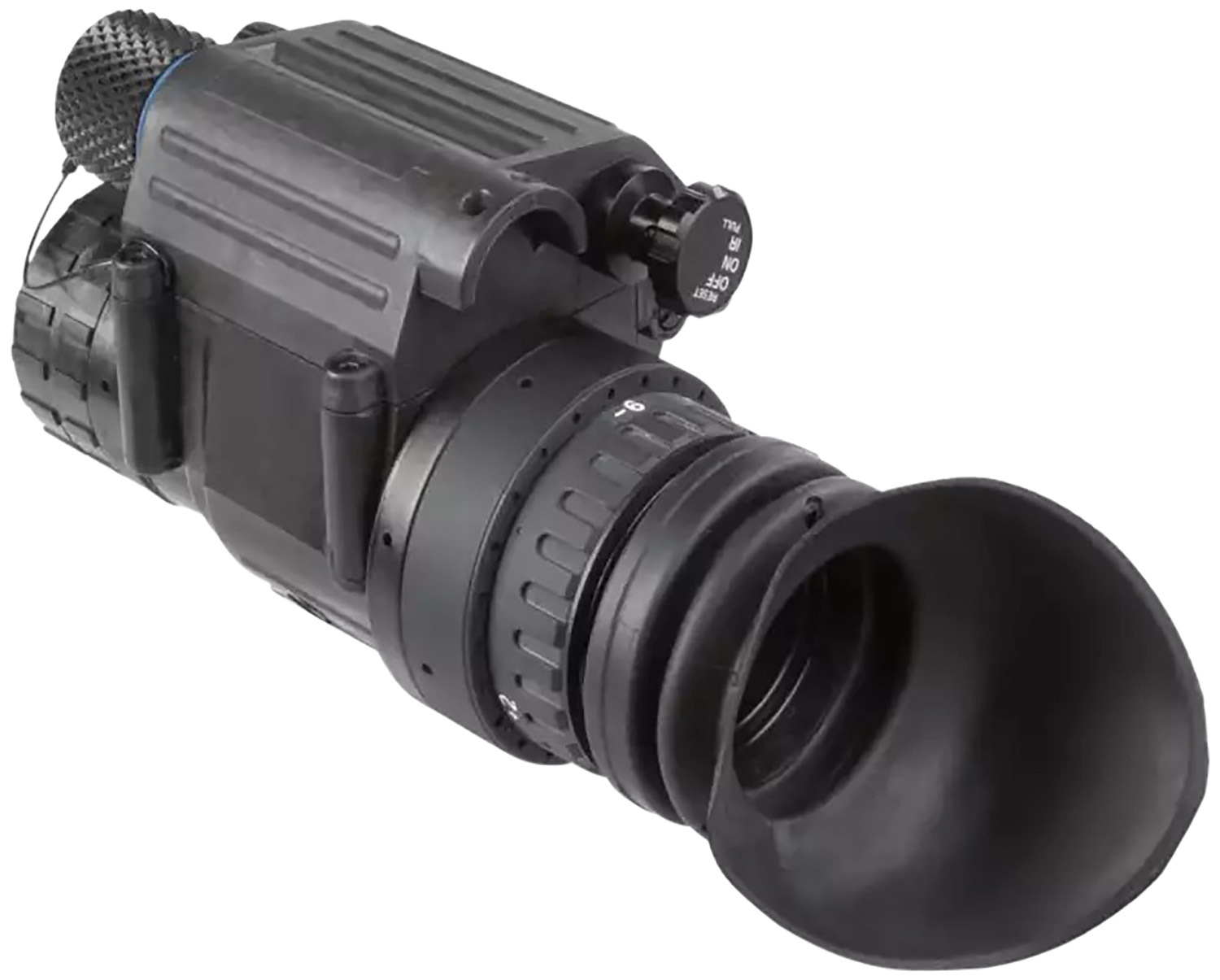

The 3APW version pairs the PVS-14 body with a Gen 3 auto-gated, FOM 2000+ image intensifier tube that uses a P45 white phosphor screen. P45 renders the scene in shades of gray rather than the traditional green, which many users find easier to read for fine detail, shadows and contrast over a long night. Auto-gating rapidly switches the tube power to protect it and keep the picture usable when headlights, flashlights or muzzle flash suddenly appear. Note: photos show the identical PVS-14 housing used across AGM PVS-14 models.
AGM grades its tubes into levels based mainly on resolution and image cleanliness. AGM lists the 3APW tube as Gen 3 auto-gated white phosphor with a figure of merit of 2000 or more, a step above its Level 1 tubes; for exact resolution, figure of merit and any spot or blemish specification on this tube, refer to the AGM datasheet or ask us before you order.
Controls and Features
Manual gain control lets you set image brightness for the conditions, while an automatic bright-light cut-off protects the tube from damage. LED indicators inside the field of view warn of low battery, IR on and excessive light. The built-in infrared illuminator provides close-range light that is invisible to the naked eye.
What Is Included
The package includes the monocular, head mount assembly with brow pad, eye cup, helmet and head mount adapter, soft carrying case, daylight filter, shoulder strap, lens paper, diopter lens cap, sacrificial window, demist shield, manual and battery. Optional accessories include 3x and 5x afocal magnifiers, a 51 degree lens kit, MICH, PASGT and Rhino helmet mounts, a J-arm adapter, a binocular bridge and a weapon mount.
Who Benefits Most
This version suits hunters, landowners and shooters who specifically want the P45 white phosphor look in a Gen 3 auto-gated tube, for example for scanning fields, tracking game or checking fence lines, and who prefer the familiar AA-powered classic PVS-14 body over the lighter PVS-14E.
Honest Limitations
At 1x, any PVS-14 is for navigation and observation, not long-range identification. The classic PVS-14 runs on AA batteries only. Helmet mounts are sold separately. Night vision image intensifiers are export-controlled and sold for use within the United States. AGM covers this monocular with a three-year warranty.
Specifications
- Brand: AGM Global Vision
- Model: PVS-14 3APW
- Item number: 11P4M123474111
- UPC: 810027778796
- Tube: Gen 3 Auto-Gated P45 White Phosphor FOM 2000+
- Phosphor: P45 white
- Magnification: 1x
- Lens: 27mm F/1.2
- Field of view: 40 degrees
- Focus: 0.25 m to infinity
- Diopter: -6 to +2
- Battery: 1 x AA, up to about 40 hours (IR off)
- Weight: about 12.4 oz
- Operating temperature: -60 to 120 F
- Warranty: 3 years
Before You Buy
Decide whether you will use the monocular handheld, on a head mount or on a helmet. Night vision devices are not firearms, so no FFL transfer is needed, but they are export-controlled and sold for domestic use only.
Who It Is For
The AGM PVS-14 3APW Monocular is a great fit for anyone who wants a proven, versatile PVS-14 platform with a Gen 3 Auto-Gated P45 White Phosphor FOM 2000+ tube.
Buy the AGM PVS-14 3APW Monocular at MAG5 Firearms
MAG5 Firearms is a family-owned FFL in Collegeville, Pennsylvania. Order the AGM PVS-14 3APW Monocular online, or browse our optics section for night vision, thermal and mounts. For factory details, visit AGM Global Vision.
