Description
The AGM FoxBat-5 NW1 Bi-Ocular (AGM item 13FXB525104011, UPC 810027771971) is a 5x night vision bi-ocular for mid- and long-range observation fitted with a Gen 2+ Level 1 image intensifier tube with a white P45 phosphor screen. White phosphor shows the scene in black, white and gray instead of green, which many users find more natural, with better perceived contrast in shadows and less eye fatigue on long nights. Level 1 is AGM’s value grade, so you get the white phosphor look at a Gen 2+ price.
AGM FoxBat-5 NW1 Bi-Ocular Overview

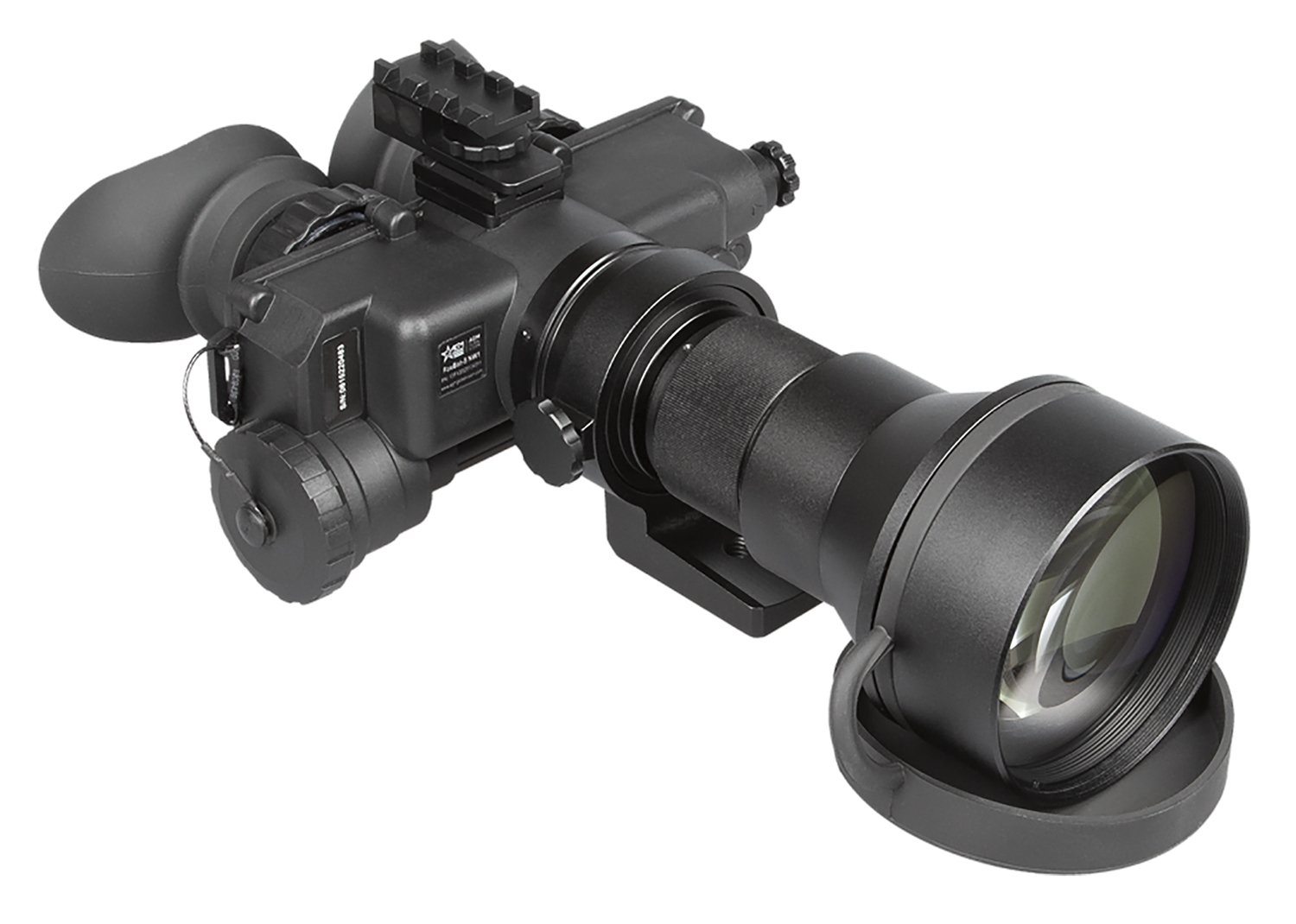

The FoxBat-5 is built for watching at distance. A single image intensifier tube feeds a beam splitter and two eyepieces, so you watch with both eyes open, which is far more comfortable than a monocular over a long sit. The distributor lists a large 140mm objective, a 9.4 degree field of view, a length of about 11 inches and a weight of about 2.35 pounds.
It runs on AA batteries, and the distributor lists up to about 40 hours of runtime (AGM’s own copy quotes up to 80 hours, so the real figure depends on IR use and temperature). Fast multi-coated optics and a bright-light shut-off that protects the tube round out the package.
Image Intensifier Tube
The NW1 configuration is the part of this listing that sets it apart from other FoxBat-5 versions: a Gen 2+ tube with white phosphor. Note: photos show the FoxBat-5 housing, which is identical across tube options.
AGM grades its tubes by resolution and image cleanliness. For the exact resolution, figure of merit and blemish specification of the tube in this unit, check the AGM datasheet or ask us before you order.
Controls and Features

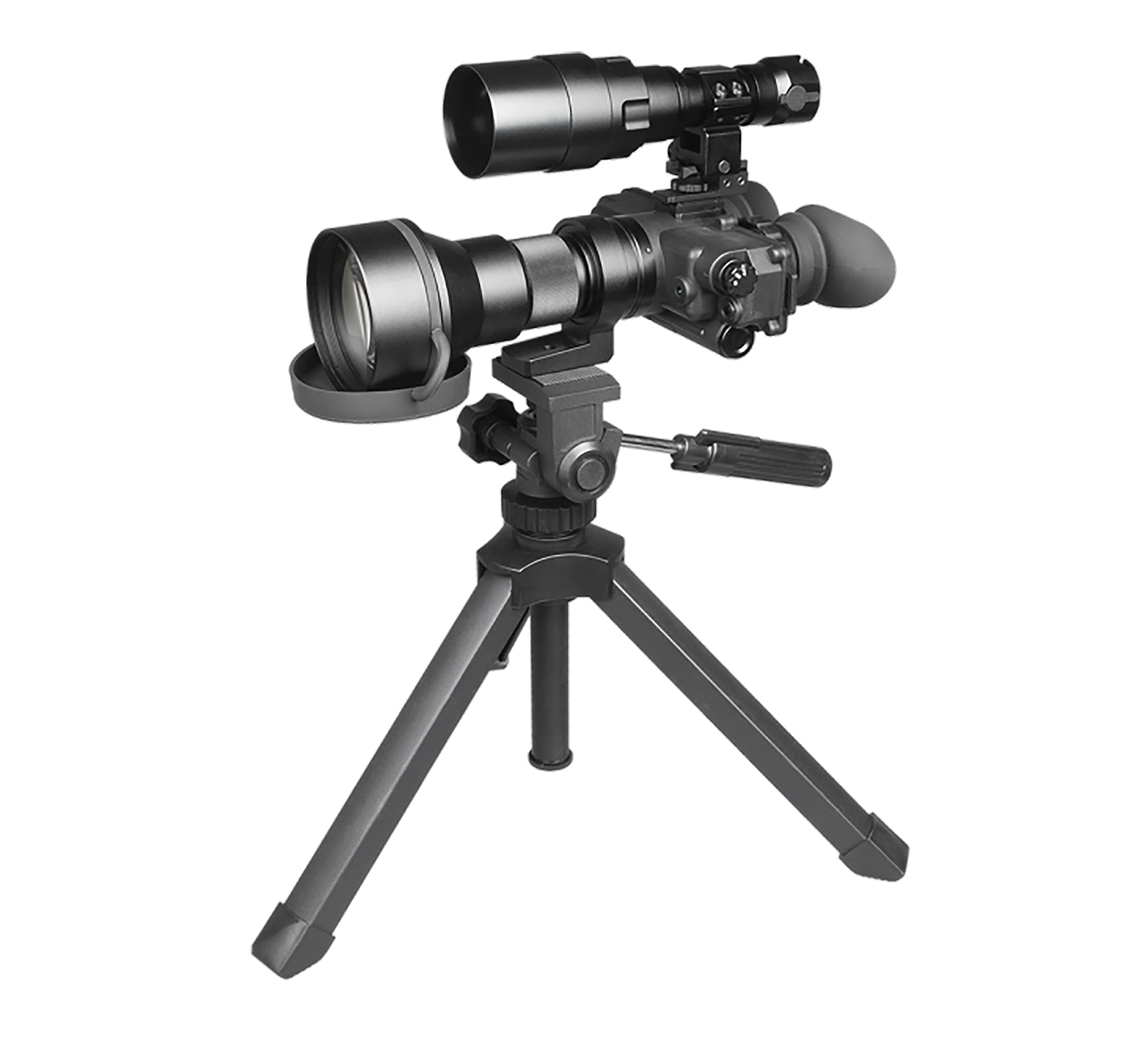

A detachable infrared illuminator adds light at distance in total darkness, and the eyepieces adjust for diopter from -5 to +5. The body has a tripod mount, and AGM includes a tripod so you can glass a field or feeder for hours without arm fatigue.
At 5x this is an observation tool rather than a navigation device. It is well suited to watching game trails, checking livestock, wildlife study and property security from a fixed position.
What Is Included
The box includes the night vision bi-ocular, detachable IR illuminator, tripod, lens cloth, hard case and user manual.
Who Benefits Most
This version suits buyers who want the white phosphor look on a Gen 2+ budget, hunters who spend long nights behind the glass, and anyone who finds green images tiring.
Honest Limitations
At 5x the field of view is narrow, so it is not meant for walking or driving, and any hand shake is magnified, which is why the tripod matters. The single tube means there is no true stereo depth.
It is larger and heavier than a 1x goggle. Night vision image intensifiers are export-controlled and sold for use within the United States. Check AGM’s current warranty terms before you buy.
Specifications
- Brand: AGM Global Vision
- Model: FoxBat-5 NW1
- Item number: 13FXB525104011
- UPC: 810027771971
- Tube: Gen 2+ Level 1 White Phosphor (P45)
- Magnification: 5x
- Objective: 140mm (per distributor)
- Field of view: 9.4 degrees
- Diopter: -5 to +5
- Battery: AA, up to about 40 hours
- IR illuminator: detachable
- Weight: about 2.35 lb
- Length: about 11 in
Before You Buy
Think about how you will use it, how long your typical outing lasts and which batteries you want to carry. Night vision devices are not firearms, so no FFL transfer is needed, but image intensifier devices are export-controlled and sold for use within the United States only.
Who It Is For
The AGM FoxBat-5 NW1 Bi-Ocular is a great fit for hunters, wildlife watchers and landowners who want Gen 2+ Level 1 White Phosphor performance.
Buy the AGM FoxBat-5 NW1 Bi-Ocular at MAG5 Firearms
MAG5 Firearms is a family-owned FFL in Collegeville, Pennsylvania. Order the AGM FoxBat-5 NW1 Bi-Ocular online, or browse our optics section for more night vision, thermal and mounting gear. For factory details, visit AGM Global Vision.
